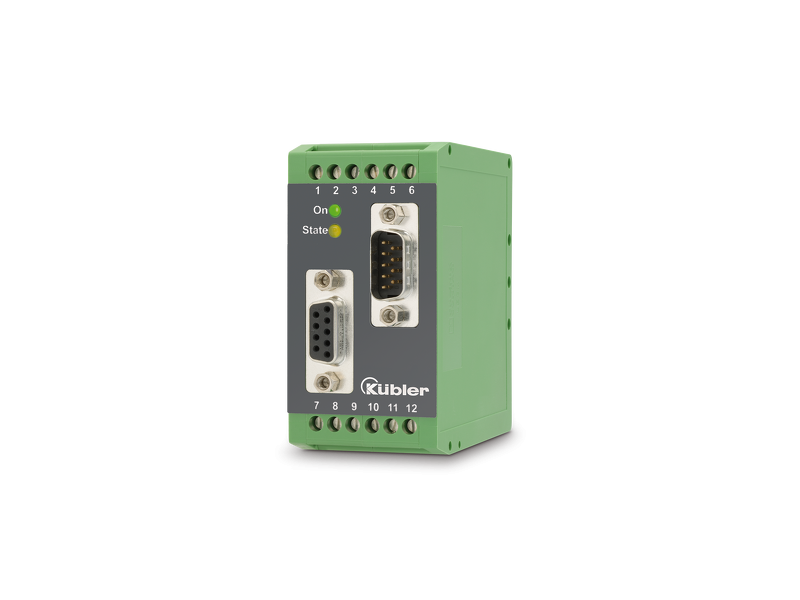

Kuebler SinCos to HTL / TTL; 8.SK.1SC-1D
SinCos to HTL / TTL; 8.SK.1SC-1D...
Cena na upit
SinCos to HTL / TTL; 8.SK.1SC-1D
| Mechanical | |
|---|---|
| Dimension | 40 mm x 79 mm x 91 mm |
| Working temperature | 0 °C ... 45 °C |
| Protection level | IP20 |
| Connection types |
Screw terminals Sub-D connector |
| Electrical | |
|---|---|
| Input interfaces | SinCos |
| Output interfaces |
TTL / RS422 HTL |
| Inputs coding | Sin+, Sin-, Cos+, Cos-, Ref+, Ref-, VM |
| Outputs coding |
A, B, 0 A, A|, B, B|, 0, 0| |
| Input frequency | 400.000 Hz |
| Output frequency | 4.000.000 Hz |
| Power supply | 18...30 V DC |
-
Signalwandler SK.1SC-1D en
