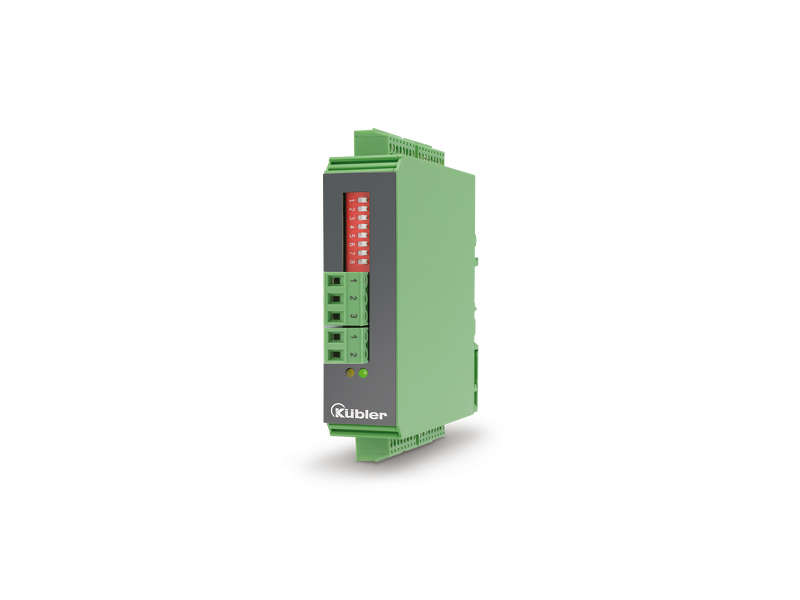

Kuebler HTL / TTL signal duplication; 8.SP.2D-2D
HTL / TTL signal duplication; 8.SP.2D-2D...
Cena na upit
HTL / TTL signal duplication; 8.SP.2D-2D
| Mechanical | |
|---|---|
| Dimension | 22 mm x 102 mm x 102 mm |
| Working temperature | -20 °C ... 60 °C |
| Protection level | IP20 |
| Connection types | Screw terminals |
| Electrical | |
|---|---|
| Input interfaces |
TTL / RS422 HTL |
| Output interfaces |
TTL / RS422 HTL |
| Inputs coding |
A, B, 0 A, A|, B, B|, 0, 0| |
| Outputs coding |
A, B, 0 A, A|, B, B|, 0, 0| |
| Input frequency | 1.000.000 Hz |
| Output frequency | 1.000.000 Hz |
| Power supply | 12...30 V DC |
-
Signalwandler SP.2D-2D en
