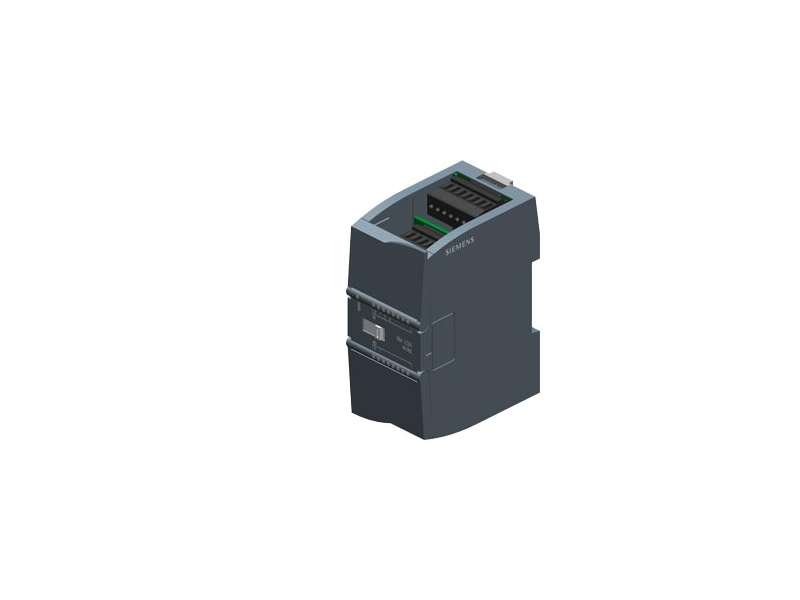

Name: Siemens Analog I/O SM 1234, 4AI/2AO - 6ES7234-4HE32-0XB0
Brand: Siemens
SKU: 6ES7234-4HE32-0XB0
Price: 49435.14 RSD
Availability: OutOfStock

0 Uporedi proizvode

0 Pogledaj korpu

+381 11 257 19 22

Siemens Analog I/O SM 1234, 4AI/2AO - 6ES7234-4HE32-0XB0

SIMATIC S7-1200, analog I/O SM 1234, 4 AI/2 AO, +/-10 V, 14-bit resolution or 0 (4)-20mA, 13-bit resolution...

Brand: Siemens
Šifra: 6ES7234-4HE32-0XB0
Dostupnost: Proveriti dostupnost

Cena bez pdv-a: 41.195,95

Cena sa pdv-om: 49.435,14

Kolicina:

Opis
Specifikacija

SIMATIC S7-1200, analog I/O SM 1234, 4 AI/2 AO, +/-10 V, 14-bit resolution or 0 (4)-20mA, 13-bit resolution

General information
Product type designation		SM 1234, AI 4x13 bit/AQ 2x14 bit
Supply voltage
Rated value (DC)		24 V
Input current
Current consumption, typ.		60 mA
from backplane bus 5 V DC, typ.		80 mA
Power loss
Power loss, typ.		2 W
Analog inputs
Number of analog inputs		4; Current or voltage differential inputs
permissible input voltage for voltage input (destruction limit), max.		35 V
permissible input current for current input (destruction limit), max.		40 mA
Cycle time (all channels) max.		625 µs
Input ranges
● Voltage		Yes; ±10V, ±5V, ±2.5V
● Current		Yes; 4 to 20 mA, 0 to 20 mA
● Thermocouple		No
● Resistance thermometer		No
● Resistance		No
Input ranges (rated values), voltages
● -10 V to +10 V		Yes
— Input resistance (-10 V to +10 V)		≥9 MOhm
● -2.5 V to +2.5 V		Yes
— Input resistance (-2.5 V to +2.5 V)		≥9 MOhm
● -5 V to +5 V		Yes
— Input resistance (-5 V to +5 V)		≥9 MOhm
Input ranges (rated values), currents
● 0 to 20 mA		Yes
— Input resistance (0 to 20 mA)		280 Ω
● 4 mA to 20 mA		Yes
Analog outputs
Number of analog outputs		2; Current or voltage
Output ranges, voltage
● -10 V to +10 V		Yes
Output ranges, current
● 0 to 20 mA		Yes
● 4 mA to 20 mA		Yes
Load impedance (in rated range of output)
● with voltage outputs, min.		1 000 Ω
● with current outputs, max.		600 Ω
Cable length
● shielded, max.		100 m; shielded, twisted pair
Analog value generation for the inputs
Measurement principle		Differential
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.		12 bit; + sign
● Integration time, parameterizable		Yes
● Interference voltage suppression for interference frequency f1 in Hz		40 dB, DC to 60 V for interference frequency 50 / 60 Hz
Smoothing of measured values
● parameterizable		Yes
● Step: None		Yes
● Step: low		Yes
● Step: Medium		Yes
● Step: High		Yes
Analog value generation for the outputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.		14 bit; Voltage: 14 bit; Current : 13 bit
Errors/accuracies
Temperature error (relative to input range), (+/-)		25 °C ±0.1%, to 55 °C ±0.2% total measurement range
Temperature error (relative to output range), (+/-)		25 °C ±0.3%, to 55 °C ±0.6% total measurement range
Basic error limit (operational limit at 25 °C)
● Voltage, relative to input range, (+/-)		0.1 %
● Current, relative to input range, (+/-)		0.1 %
● Voltage, relative to output range, (+/-)		0.3 %
● Current, relative to output range, (+/-)		0.3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● Common mode voltage, max.		12 V
Interrupts/diagnostics/status information
Alarms		Yes
Diagnostics function		Yes
Alarms
● Diagnostic alarm		Yes
Diagnoses
● Monitoring the supply voltage
