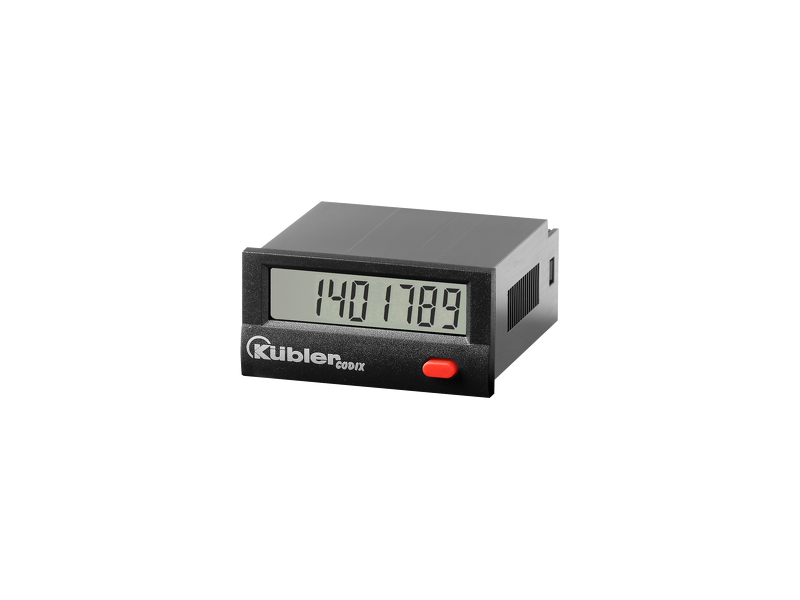

Kuebler Service counter electronic Codix 142; 6.142.011.300.XXXX.XX.XXXX
Service counter electronic Codix 142; 6.142.011.300.XXXX.XX.XXXX Service pulse counter for NPN / PNP input signals Manual / electric reset Optionally factory programmable...
Cena na upit
Service counter electronic Codix 142; 6.142.011.300.XXXX.XX.XXXX
Service pulse counter for NPN / PNP input signals
- Manual / electric reset
- Optionally factory programmable
- Output signal and message text on reaching the preset
-
Dimension
· 48 x 24 mm | 45 x 22 mm - Power supply:
- Display 7-digit number, LCD
Functional
- Direct display of the total number of pulses.
- Display of the service preset and its distant signal at the touch of a button.
- Preset output as display text and transistor output.
- Distant signal for the service intervals as display text.
- Manual or electrical reset of the display or service intervals.
- Fast PNP or damped NPN control via separate inputs.
- Power supply from 10 to 30 V DC.
- Storage of values in EEPROM
- Service intervals preprogrammed e.g.:
Service at 5000 pulses (Service)
Warning signal at 4900 pulses (Preservice)
Flashing text message in the display (Service or Preservice).
- Reset button with multi-function connectable via separate input.
- Reset to delivery status also possible.
- Factory programmable.
| Mechanical | |
|---|---|
| Model | electronic |
| Function | Pulse counter |
| Dimension 1 | 48 x 24 mm | 45 x 22 mm |
| Protection level | IP65 |
| Working temperature | -20 °C ... +65 °C |
| Weight | 40 g |
| Reset | electronic |
| Electrical | |
|---|---|
| Power supply | 10...30 V DC |
| Signal input |
NPN PNP |
| Signal output | 1 x NPN open Collector |
-
140-142 en
