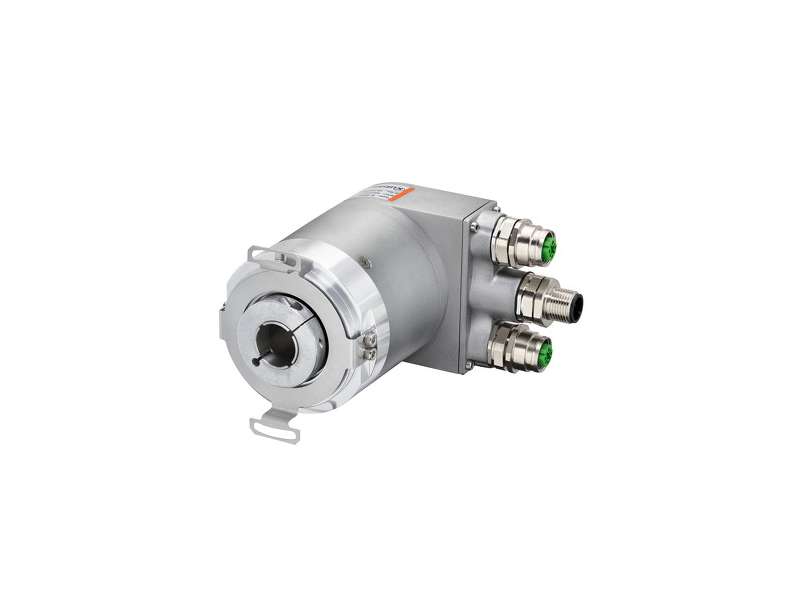

Kuebler Sendix 5888- multiturn enkoder sa Profinet IO interfejsom ; 8.5888.XXC2.C212
For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface. The absolute encoders Multiturn Sendix 5868 / 5888 with PROFINET IO interface...
Cena na upit
For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface.
The absolute encoders Multiturn Sendix 5868 / 5888 with PROFINET IO interface and optical sensors can be used in all applications with Profinet technology. These encoders support IRT mode and are therefore ideally suited for real-time applications.
Reliable
- Suitable for all PROFINET applications by using the encoder profile 4.1.
- With IP67 protection and a robust housing construction, it is optimally suited for the toughest external operating conditions.
- IRT mode.
- Cycle time ≤ 1 ms.
- Firmware updater allows easy extension of features without disassembling the encoder.
- Fast, simple, error-free connection with M12 plug.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
10 mm hollow shaft, blind hole 12 mm hollow shaft, blind hole 14 mm hollow shaft, blind hole 15 mm hollow shaft, blind hole 1/2 " hollow shaft, blind hole 3/8 " hollow shaft, blind hole |
| Flange type |
Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm Ø 72.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types | M12 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 540 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
16 bits singleturn 12 bits multiturn |
| Interfaces | PROFINET IO |
-
5868-5888 Profinet en
