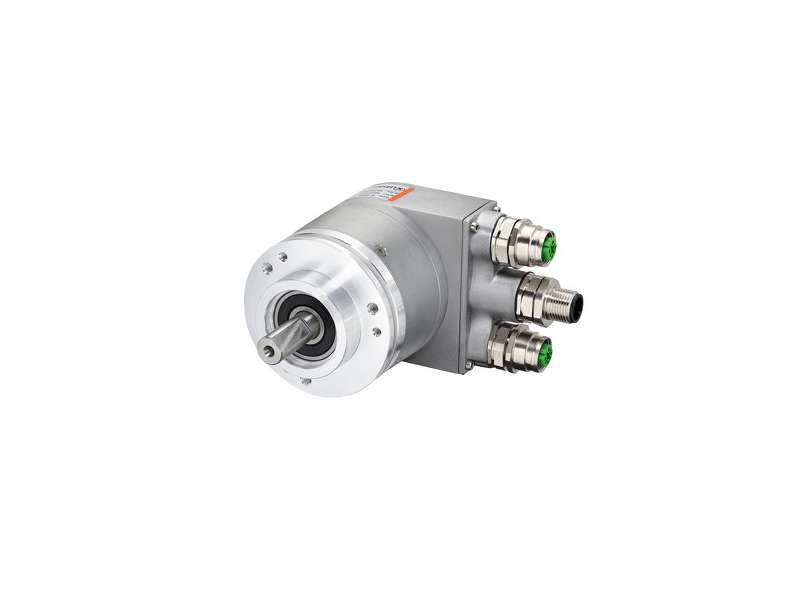

Kuebler Sendix 5858- Enkoder sa Profinet-IO interfejsom ; 8.5858.XXC2.C212
For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface. The absolute encoders Singleturn Sendix 5858 / 5878 with PROFINET IO interface...
Cena na upit
For real-time communication: Industrial Ethernet encoders with PROFINET IO-interface.
The absolute encoders Singleturn Sendix 5858 / 5878 with PROFINET IO interface and optical sensors can be used in all applications with Profinet technology. These encoders support IRT mode and are therefore ideally suited for real-time applications.
- Suitable for all Profinet applications by using the encoder profile 4.1.
- With IP67 protection and a robust housing construction, it is optimally suited for the toughest external operating conditions.
- Use in IRT mode.
- Cycle time ≤ 1 ms.
- Firmware updater allows easy extension of features without disassembling the encoder.
- Fast, simple, error-free connection with M12 plug.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Ø 58.00 mm Ø 63.50 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types | M12 connector radial |
| Max. rotational speed | 9.000 min-1 |
| Weight | 500 g |
| Scanning | optical |
| Resolution max. | 16 bits singleturn |
| Supply voltage | 10...30 V DC |
| Interfaces | PROFINET IO |
-
5858-5878 Profinet en
