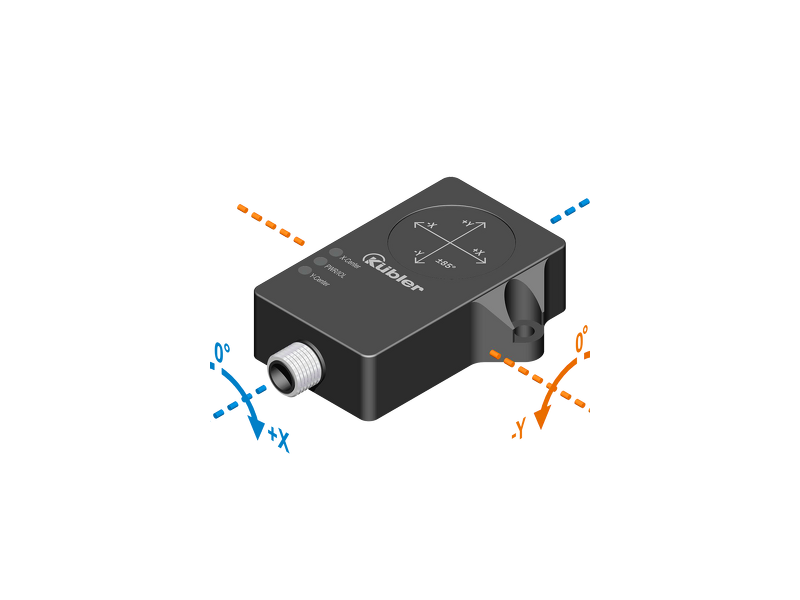

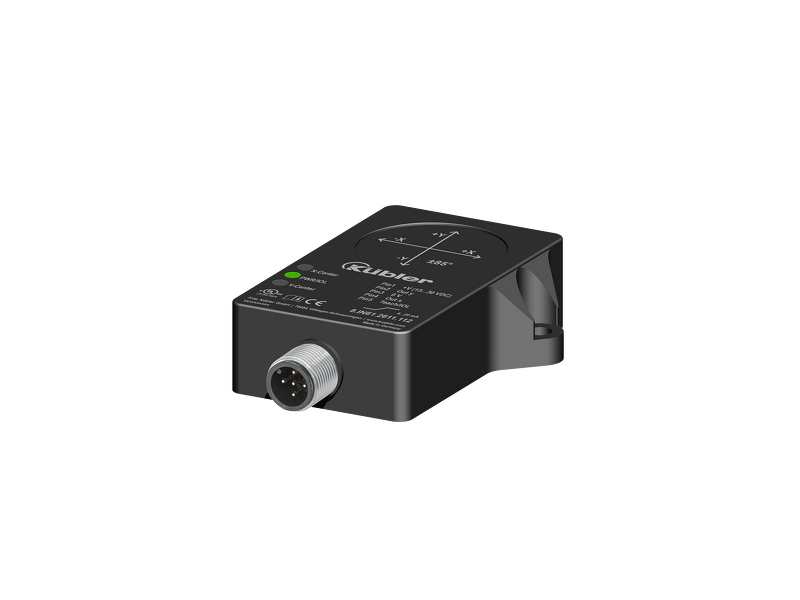

General data 2-axis measurement
Messbereich (max.) -85 ... +85°
Resolution 16 bit
Repeat accuracy ≤ 0.1 % v. E.
Temperature drift ≤ ±0.012 %/K
Linearity deviation ≤ ±0.3%
Accuracy (at 25°C) ≤ ±0.12°
depending on the measuring range
Mechanical characteristics
Electrical connection M12 connectors, 5-pin
Weight 89 g [3.14 oz]
Protection acc. to EN 60529 IP68 / IP69k
Working temperature range -40 °C ... +85 °C [-40 °F ... +185 °F]
Material housing Plastic, polyetherimide
Vibration resistance (EN 60068-2-6) 20 g; 5 h/axis; 3 axes
Shock resistance (EN 60068-2-27) 150 g; 4 ms 1/2 sine
MTTF 297 years
Dimensions 71.6 x 62.6 x 20 mm [2.82 x 2.46 x 0.79“]
Interface characteristics analog output
Current/voltage output
factory setting
adjustable
4 ... 20 mA or 0 ... 10 V
0 ... 20 mA
0.1 ... 4.9 V / 0.5 ... 4.5 V / 0 ... 5 V
Load resistance voltage output ≥ 4.7 kΩ
Load resistance current output ≤ 0.4 kΩ
Electrical characteristics
Supply voltage 15 ... 30 V DC
Initialization time ≤ 1 s
Residual ripple ≤ 10 % Uss
Isolation test voltage ≤ 0.5 kV
Short-circuit protection yes
Wire breakage /
Reverse polarity protection
yes
Current consumption max. 80 mA
