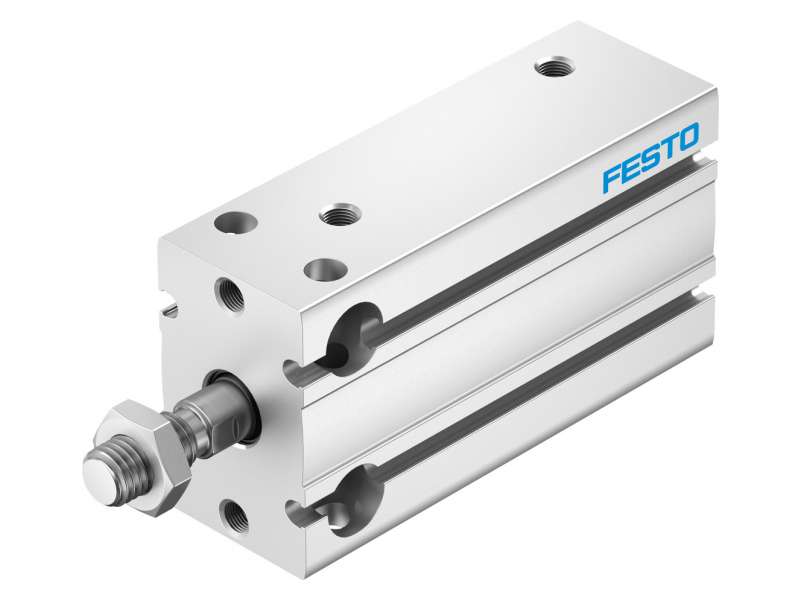

Festo Compact air cylinder DPDM-...-25- - ; 4328892
Compact due to being shorter and lighter and variety of ways it can be screwed on directly. Fixed cushioning, with non-rotating or through piston rod, single or...
Cena na upit
Compact due to being shorter and lighter and variety of ways it can be screwed on directly. Fixed cushioning, with non-rotating or through piston rod, single or double-acting: caters for your exact requirements.
- Mounting using through-hole and internal thread
- Compact design
- Piston rod variants
- Magnetic piston for position sensing
- Stroke
- 5 mm ... 50 mm
- Piston diameter
- 25 mm
- Type code
- DPDM
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
-
Single-acting
Pulling
Pushing
Double-acting - Design
-
Piston
Piston rod
Profile barrel - Position sensing
- For proximity sensor
- Variants
-
Heat-resistant seals max. 120°C
Piston rod at one end
Through piston rod
Continuous, hollow piston rod - Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 1 bar ... 8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Ambient temperature
- -10 °C ... 120 °C
- Theoretical force at 6 bar
- 247 N ... 295 N
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 247 N ... 295 N
- Type of mounting
-
Optionally:
With internal thread
With through-hole - Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Cover material
- Wrought aluminum alloy
- Housing material
- Wrought aluminum alloy, anodized
- Piston rod material
- High-alloy stainless steel
-
4328892datasheet
-
DPDM ENUS
